Treasure Coast Locksmith provides master key systems services in Port St. Lucie, Stuart, Fort Pierce, Vero Beach, Jensen Beach, and across the Treasure Coast. Call (772) 758-1322 for mobile service. Commercial master key systems use a hierarchy of keys where a master key opens all doors, sub-master keys open zones, and individual keys open specific doors. Ideal for offices, medical buildings, and multi-tenant properties. Treasure Coast Locksmith designs and installs master key systems with full documentation.
A master key system is a traditional mechanical solution for differential access control in commercial buildings. Unlike electronic access control, master key systems use physical keys and lock cylinders - no electronics, no batteries, no internet required. They're proven, reliable, and still the right choice for many Treasure Coast businesses.
The system works through a hierarchy. At the top is the grand master key that opens every door in the building. Below that are master keys for different zones (one per floor, one per department, one per tenant).
Below that are individual sub-master keys for specific areas. At the bottom are change keys that open only a single door.
Treasure Coast Locksmith designs master key systems from scratch for new construction, and redesigns existing systems for renovations or security updates. We use restricted keyways (Medeco M3, Mul-T-Lock MT5+, Schlage Primus) for high-security applications and standard keyways for budget-sensitive applications. Every system includes full documentation.
Why master key systems still work
- No electronics - no batteries, no software, no internet dependency.
- Proven reliability - decades of field-proven performance.
- No subscription fees - one-time installation cost, no monthly fees.
- Works during power outages - mechanical systems don't need electricity.
- Multi-level hierarchy - grand master, master, sub-master, change keys.
- Full documentation - keying schedules for future modifications.
- Restricted keyways available - Medeco, Mul-T-Lock, Primus for high-security.
- Complements access control - master keys for emergency access, cards for daily.
When master keys are the right choice
Situations where master key systems outperform electronic access control.
Typical master key scenarios
- Small office building with 5-10 doors and limited budget - master key cheaper than access control.
- Historic building where wiring for electronic access is impractical or not permitted.
- Warehouse operation in areas without reliable internet or power - mechanical keys are foolproof.
- Medical office wanting restricted keyway for prescription storage while using cards for main access.
- Multi-tenant professional building where tenants want their own keys without electronic management.
- Backup for electronic access control - master keys for emergency entry when electronic fails.
- Budget-conscious retail operation where card readers aren't financially justified.
- Manufacturing facility where electronic access is too complex for blue-collar workforce.
Master key hierarchy design
Master key system design is essentially a puzzle. The locksmith needs to create a pin stack for each cylinder that accepts multiple valid keys (the grand master, the relevant zone master, the specific change key) while rejecting unauthorized keys. Each additional master pin added to a cylinder creates additional possible key combinations - and additional security considerations.
The math matters. A simple 5-pin Schlage cylinder has approximately 10 possible cuts per pin, giving 10^5 = 100,000 theoretical key combinations. Add master keying and each pin chamber can have multiple valid heights, which exponentially increases the number of keys that will technically work the cylinder.
A poorly-designed master key system can inadvertently allow hundreds or thousands of unauthorized keys to work doors they shouldn't.
Professional master key design accounts for this by carefully selecting pin combinations that don't create unintended 'phantom keys' - cuts that don't belong to any legitimate key in the system but happen to work some cylinders due to master keying math. We use master keying software to verify our designs before cutting any pins.
Documentation is critical. Every master key system needs a keying schedule - a spreadsheet or database listing which key opens which door with which pin stack. Without the schedule, future rekeys and additions become impossible without starting over.
We provide full documentation in paper and digital formats.
How master key system design works
Site assessment
Call (772) 758-1322. We visit your site to count doors and understand access needs.
Hierarchy design
Create a keying schedule defining grand master, zone masters, and change keys.
Installation

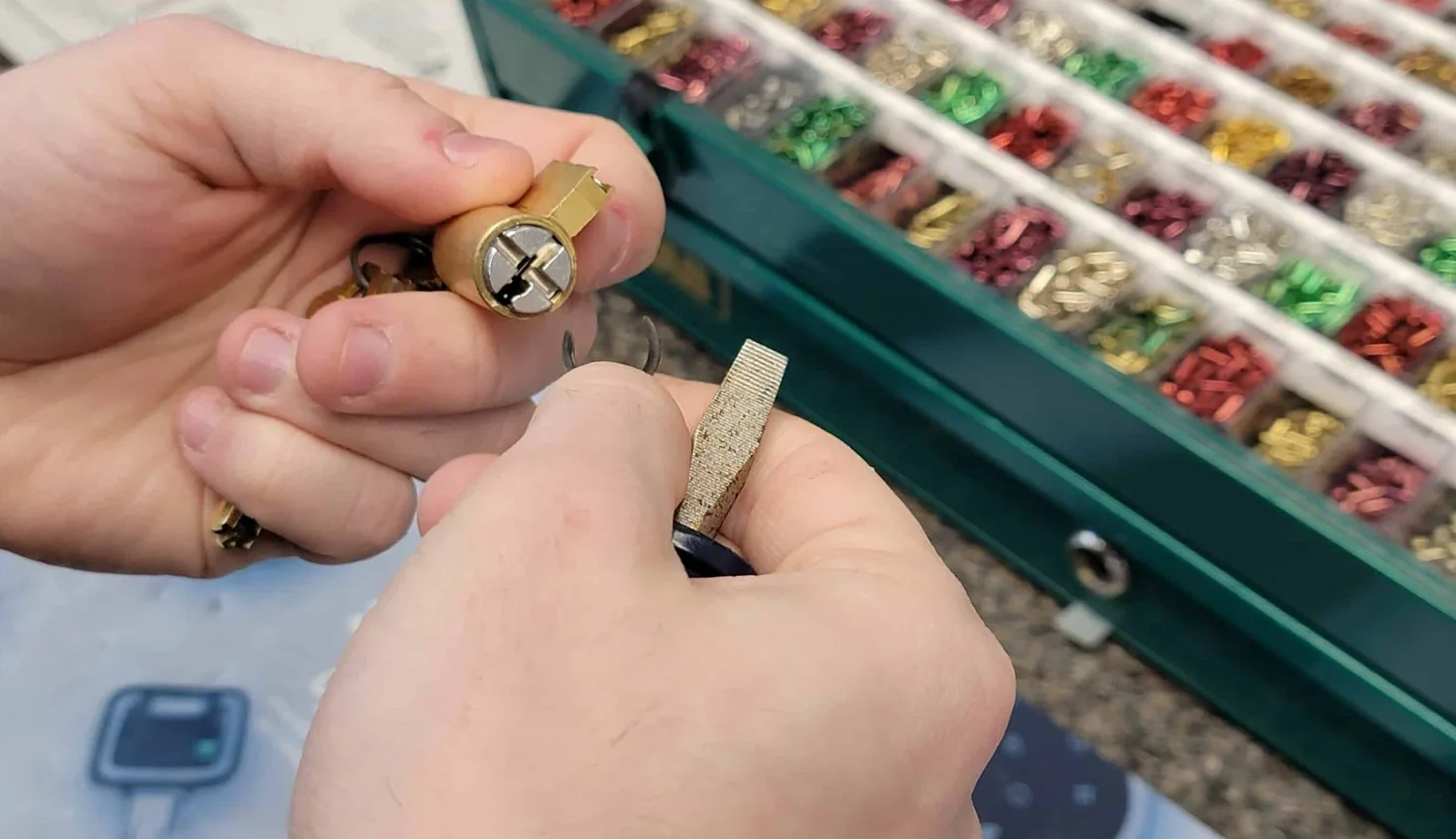

Pin all cylinders per the schedule. Cut all keys per the schedule.
Documentation handoff
Deliver keying schedule, key tags, and master key manual for your records.
Master key system tips
- Keep the keying schedule in a secure location - it's critical for future modifications.
- Track key assignments with a log - which key was issued to which employee.
- Use restricted keyways (Medeco, Mul-T-Lock) for high-security applications.
- Design the hierarchy with future growth in mind - adding rooms later is easier if planned.
- Consider combining master keys with electronic access - mechanical for emergency, electronic for daily.
- Rekey the master system if the grand master key is lost or compromised.
Related services
Other Treasure Coast Locksmith services in this cluster.
Master key system FAQs
Common questions about commercial master key system design.
How much does a master key system cost?
Depends on door count, cylinder type, and restricted keyway choice. Small system (5-10 doors, standard keyway): $950-$1,850. Medium system (15-30 doors): $2,850-$5,850.
Large system (50+ doors with restricted keyway): $7,500-$18,500.
What is the difference between a master key and a grand master key?
A grand master key opens every door in a multi-level system. A master key opens all doors within a specific zone (floor, department, tenant). A sub-master opens a subset of that zone.
A change key opens only one specific door. Multi-level hierarchies have all four levels.
Can you design a master key system for a restricted keyway?
Yes. Medeco M3, Mul-T-Lock MT5+, and Schlage Primus all support master keying. Restricted keyways are recommended for master systems because they prevent unauthorized key duplication - critical for maintaining security of the master system.
What happens if the master key is lost?
Security emergency. Someone with the master key can open every door in the system. Response is to rekey the master system immediately, changing all pin combinations.
Cost is similar to the original installation but faster because the design is already established.
Can I add more doors to an existing master key system later?
Yes, if the keying schedule is available. We use the existing schedule to pin new cylinders that match the existing hierarchy. This is why keeping documentation matters - without it, additions require redesigning the whole system.
Do master key systems work with smart locks?
Partially. Smart locks have mechanical backup cylinders that can be master keyed. The digital codes in smart locks are independent.
Most master systems use traditional mechanical deadbolts for simplicity and reliability.
Should I use a master key system or access control?
Depends on your needs. Access control is better for buildings with many users, frequent turnover, or compliance requirements (HIPAA). Master keys are better for smaller buildings, budget constraints, or situations without reliable internet.
Many buildings combine both.
How long does master key system installation take?
Small systems (5-10 doors): 2-4 hours. Medium systems (15-30 doors): 4-8 hours. Large systems (50+ doors): 1-2 days.
Installation time depends on door count and whether cylinders need to be replaced or just rekeyed.
Can you rekey an existing master key system?
Yes. Common after employee termination, security breach, or lost master key. We use the existing hierarchy but change all pin combinations to new values.
The hierarchy stays the same; the specific keys change.
Are master key systems HOA-approved?
Master keys are typically interior to the building, so HOAs rarely restrict them. Exterior door finishes for the master key hardware may still need to match HOA standards. We verify before installation.
Can you handle multi-building master systems?
Yes. Multi-building master systems (campus keying) are complex but within our capability. Typical use cases: multi-building offices, apartment complexes, schools, medical campuses.
Design requires more planning than single-building systems.
What brands do you recommend for master key cylinders?
For security and durability: Medeco M3, Mul-T-Lock MT5+. For standard commercial: Schlage L-series, Sargent 8200, Best 45H, Corbin Russwin ML2000. For budget: Kwikset Signature Series or Schlage B-series.
