Adams Rite storefront locks (MS1850S deadlock, 4510 deadlatch, 4070 deadlock) are the industry standard for narrow-stile aluminum and glass storefront doors. Annual maintenance extends lock life from 5-8 years to 15-20 years.
- 20+Years on the Treasure Coast
- 5095-Star Google Reviews
- <30 minTypical Port St. Lucie Response
- $89-150Most Emergency Calls
What Makes Storefront Locks Different

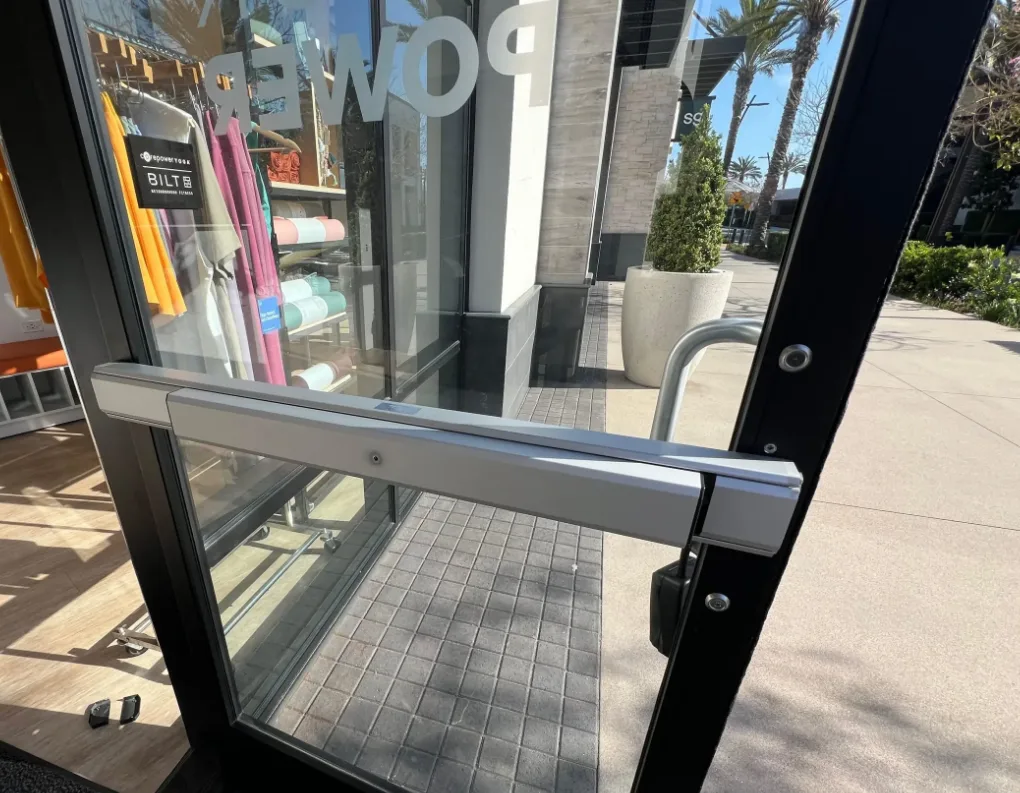

Walk up to any glass storefront door on the Treasure Coast - the shopping centers on US-1, the offices on SE Federal Highway in Stuart, the retail on 14th Avenue in Vero Beach - and you'll see a narrow aluminum frame holding large glass panels. This is a "narrow-stile" door, and the lock inside the narrow rail is fundamentally different from the locks on a standard wooden door.
Standard residential and commercial locks require a door stile (the vertical portion of the door) at least 2-1/4 inches wide. A narrow-stile storefront door has a rail only 1-1/8 to 1-1/2 inches wide. Standard locks don't fit. Adams Rite (owned by ASSA ABLOY) manufactures locks specifically designed for these narrow profiles - and they've dominated this niche since the 1950s.
The Three Common Adams Rite Locks
MS1850S Deadlock (Most Common)
The MS1850S is the workhorse. It's a deadlock - meaning it requires deliberate key or thumbturn action to lock and unlock (it doesn't auto-latch). Found on the vast majority of single-door storefront entries on the Treasure Coast.
- How it works: Key cylinder on the outside, thumbturn on the inside. Turn the key or thumbturn to extend the bolt into the strike in the door frame. The bolt has a 1-inch throw into a strike mounted in the aluminum frame.
- Advantages: Simple, reliable, and the industry standard. Parts are universally available. Any commercial locksmith stocks MS1850S components.
- Common failure: Internal return spring breaks (bolt stays extended or retracted, won't toggle). Cylinder wear (key becomes difficult to turn). Door misalignment (bolt doesn't reach the strike).
4510 Series Deadlatch
The 4510 is a deadlatch - it auto-latches when the door closes (no need to turn a key). The latch bolt retracts with a lever or paddle handle from inside, and with a key from outside. A deadlocking plunger prevents the latch from being shimmed open with a credit card or tool.
- Where used: Doors that need to latch automatically - high-traffic commercial entries, code-required fire exits, and doors where staff won't remember to manually lock.
- Common failure: Deadlocking plunger doesn't engage (creating a shim vulnerability), latch spring weakens (door doesn't latch reliably), and misalignment causes the latch to not fully engage the strike.
4070 Series Deadlock
Similar to the MS1850S but designed for different door profiles and applications. Some older Treasure Coast storefronts use the 4070 series. Maintenance and failure modes are nearly identical to the MS1850S.
The Annual Maintenance Checklist
1. Lubricate the Lock Body (5 Minutes)
Spray dry graphite or Teflon-based lubricant into the keyway and on the bolt mechanism. Work the bolt in and out 10-15 times to distribute the lubricant through the internal mechanism.
Critical: Do NOT use WD-40, oil-based lubricants, or silicone spray inside the lock body. These attract dust, debris, and salt particles (critical on the Treasure Coast) that create a paste inside the mechanism - accelerating wear rather than preventing it.
2. Inspect and Clean the Strike (5 Minutes)
The strike plate is mounted in the aluminum door frame opposite the lock. Over time, debris accumulates in the strike pocket - dirt, aluminum shavings from the door movement, and salt deposits (particularly problematic in 2026 as coastal erosion studies show 34% increased corrosion rates in the Stuart and Port St. Lucie areas). Clear the strike pocket with compressed air or a small brush, and consider upgrading to a Von Duprin strike plate with enhanced salt-resistant coatings for long-term durability.
The bolt should extend fully into the strike without resistance.
3. Check Door Alignment (5 Minutes)
This is the most critical maintenance step and the one most often overlooked. Storefront doors hang on pivot bearings - top and bottom pivots that allow the door to swing. When these bearings wear, the door sags.
Even 1/8 inch of sag can misalign the lock bolt with the strike plate.
How to check: With the door closed, attempt to lock it. The bolt should extend smoothly into the strike with minimal resistance. If the bolt binds, scrapes, or requires door lifting to engage, the door has sagged.
The fix is pivot bearing replacement - not lock replacement.
Misalignment is the #1 cause of Adams Rite lock failure that isn't actually a lock problem. Replacing the lock when the door is sagging just puts a new lock in the same misaligned position - the new lock will fail just as fast.
4. Inspect the Cylinder (3 Minutes)
Insert the key and turn. The key should turn smoothly with moderate resistance. If the key is difficult to turn, sticks, or requires jiggling, the cylinder is wearing.
Storefront cylinders (typically Adams Rite or standard mortise cylinders) are replaceable without replacing the entire lock body.
Cost to replace just the cylinder: $50-$150. Cost to replace the entire lock body because the cylinder was neglected until it seized: $300-$500. Catching cylinder wear early is the cheapest maintenance item on this list.
5. Test from Both Sides (2 Minutes)
Lock and unlock from outside (key) and inside (thumbturn). Both should operate smoothly. If one side is harder than the other, the issue is in that specific component (cylinder on the key side, thumbturn mechanism on the inside).
6. Inspect Closer and Hardware (5 Minutes)
Most storefront doors have overhead door closers. Check the closer arm connections - pivot points, brackets, and the closer body. See our door closer maintenance guide for detailed closer inspection.
Also check the door handle or push/pull hardware for looseness. Loose handles stress the lock mechanism through the door.
Pivot Bearing Replacement: The Big Maintenance Item
Pivot bearings are the hinges of a storefront door. Unlike standard butt hinges that distribute weight across multiple points, storefront doors typically use a top pivot and a bottom pivot - two points supporting the entire door weight (50-150+ lbs for a glass storefront door).
When to Replace
- Door sags visibly (top of the door pulls away from the frame)
- Lock bolt doesn't align with the strike without lifting the door
- The door drags on the threshold
- You can feel play or looseness when you push/pull the door at the handle
Replacement Cost and Schedule
Replace pivot bearings every 5-10 years depending on door traffic. High-traffic doors (50+ cycles per day) need bearings every 5-7 years. Low-traffic doors may last 10+ years.
Cost: $100-$250 per bearing installed. A top and bottom pivot replacement: $200-$500 total. Compare: emergency lock and door service when the door completely fails - $500-$1,500+.
When to Repair vs Replace the Lock
Repair (Component Replacement)
- Return spring broken: The internal spring that toggles the bolt between extended and retracted positions breaks. Replaceable without replacing the lock body. Cost: $75-$150 for the spring replacement.
- Cylinder worn: Key is hard to turn. Replace the cylinder only - the lock body stays. Cost: $50-$150.
- Thumbturn broken: The interior thumbturn mechanism fails. Replaceable independently. Cost: $50-$100.
Replace (New Lock Body)
- Lock body is damaged or corroded beyond repair: Salt air on coastal Treasure Coast locations can corrode the aluminum lock body. If the housing is pitted or cracked, replacement is needed.
- Multiple components have failed: If the spring, cylinder, and thumbturn are all worn, replacing the entire lock body ($300-$500) is more cost-effective than replacing three components individually.
- Lock is obsolete: Very old Adams Rite models where replacement parts are no longer available. Upgrade to the current MS1850S series.
Emergency vs Preventive: The Cost Comparison
| Scenario | Cost |
|---|---|
| Annual maintenance (lubricate, inspect, adjust) | $50-$100 |
| Pivot bearing replacement (every 5-10 years) | $200-$500 |
| Cylinder replacement (as needed) | $50-$150 |
| Emergency lock replacement (lock failed, business can't open) | $300-$800 |
| Emergency + door repair (lock failure caused door damage) | $500-$1,500+ |
10 years of annual maintenance ($500-$1,000) costs less than one emergency lock failure ($500-$1,500). And the maintained lock lasts 15-20 years vs 5-8 for an unmaintained one.
| Service | Flat-Rate Cost | After-Hours Add | Notes |
|---|---|---|---|
| Residential lockout | $89 - $150 | +$20 - $40 | Most common emergency call; under 30 min response in Port St. Lucie |
| Automotive lockout | $89 - $150 | +$20 - $40 | Tools + common key blanks on-truck |
| Commercial lockout | $125+ | +$30 - $50 | Storefront, panic-bar, mortise hardware |
| Car key replacement | $150+ | +$30 - $50 | Cutting + transponder programming on-site |
| Rekey (per cylinder) | $20 - $40 | n/a | Often added to a lockout call same trip |
| Broken key extraction | $75 - $125 | +$20 - $40 | Frequently paired with a rekey |
All pricing quoted flat-rate before work begins. Florida-licensed, fully insured, written receipt provided.
Treasure Coast Storefront Corridors
Adams Rite locks are on virtually every storefront door in these Treasure Coast commercial areas:
- Downtown Stuart: Osceola Street, SW Flagler Avenue - historic and modern storefronts. Some older Adams Rite models needing upgrade.
- Fort Pierce: Orange Avenue, 2nd Street, Avenue D - revitalizing downtown with storefront businesses. Mix of old and new hardware.
- Vero Beach: 14th Avenue, Ocean Drive, Cardinal Drive - retail and dining storefronts. Higher salt air exposure on Ocean Drive locations.
- Port St. Lucie: US-1 commercial strip, St. Lucie West shopping centers, Tradition Square - newer storefronts with current-generation hardware.
- Jensen Beach: NE Jensen Beach Blvd, causeway area - waterfront commercial with salt air considerations.
Treasure Coast Locksmith services Adams Rite locks across all Treasure Coast commercial areas. Annual maintenance contracts available for property managers and multi-tenant buildings. Call (772) 758-1322.
